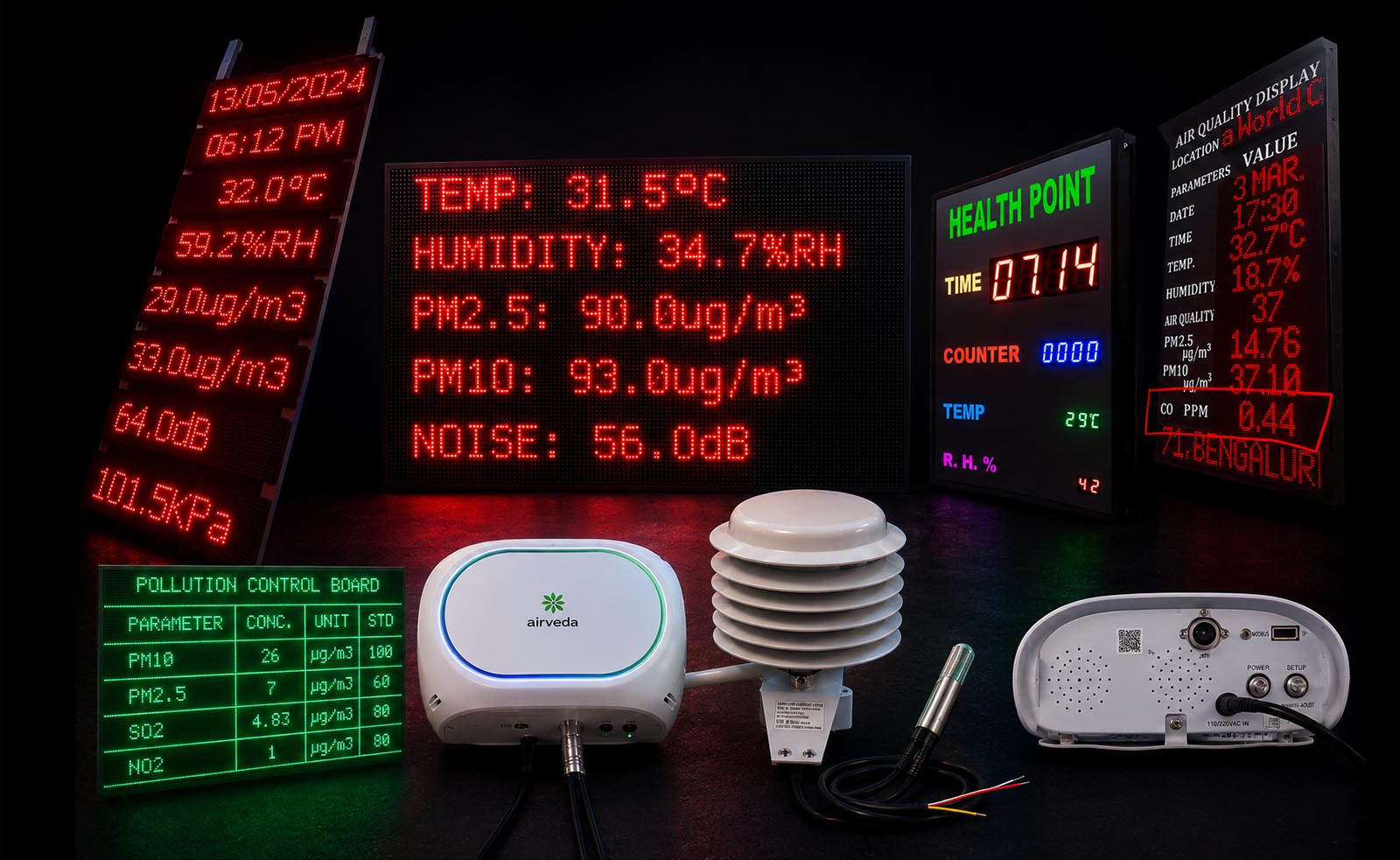

AQI, PM2.5, PM10, temperature, humidity, SO₂ and noise — live data from your analyser, displayed on a high-brightness outdoor LED panel.
CPCB-compliant. Direct analyser interface. No intermediate PC. Built for 24×7 continuous outdoor operation.
All variants use P10 modules (320×160 mm). The number of parameters displayed determines cabinet size. Click a variant to view installation photos.
Colour thresholds pre-programmed per CPCB guidelines. Any combination of parameters — scrolling, static or alternating — configured at our facility before dispatch.
We support every standard connection method. Your existing analyser connects as-is — no proprietary hardware, no lock-in.
RS232, RS485 or Modbus RTU/TCP from your CEMS analyser. Real-time, no PC required. Zero latency between measurement and display.
Display pulls data from a SCADA system or data logger over LAN or internet. Supports multiple displays from one data source simultaneously.
If your analyser software writes to a CSV or text log file, our software reads it continuously and updates the display. Works with CPCB-standard data loggers.
We manufacture our own AQI, PM2.5, PM10, temperature and humidity sensors — pre-wired and configured with the display. One cable, one power supply.
Analog 4–20 mA or 0–10V from existing sensors. Controller converts to engineering units and displays on screen. No additional hardware.
Pull from a cloud dashboard or government portal via REST API. Display updates over WiFi or SIM. Suitable for remote sites without wired connectivity.
The Central Pollution Control Board mandates that industries above a specified threshold must display real-time stack emission and ambient air quality data publicly — without delay, manipulation or tampering.
Our displays meet these requirements: direct feed from the CEMS analyser, sealed controller enclosure, and tamper-evident wiring. We have supplied CPCB-compliant displays to industries across West Bengal.
💬 Discuss CPCB requirementsController sealed. Data goes directly from analyser to display — no editable intermediate.
Updates within seconds of measurement. No buffering. Auto-restart on power failure.
PM2.5, PM10, SO₂, NOx, CO, O₃ and AQI — colour-coded per CPCB scale.
IP65 enclosure, rated for Indian climate — heat, monsoon and dust. 24×7 continuous.
Tell us what you need — we'll design it, build it and install it.
