CSPL
Information Displays

Variable Message Signs

High-brightness LED variable message signs for highways, toll plazas, urban junctions and parking facilities — 8000+ nits, IP65, solar-compatible.

Built for 24×7 outdoor operation under Indian conditions — heat, monsoon, dust and highway vibration.

💬 Get a quote View specifications →

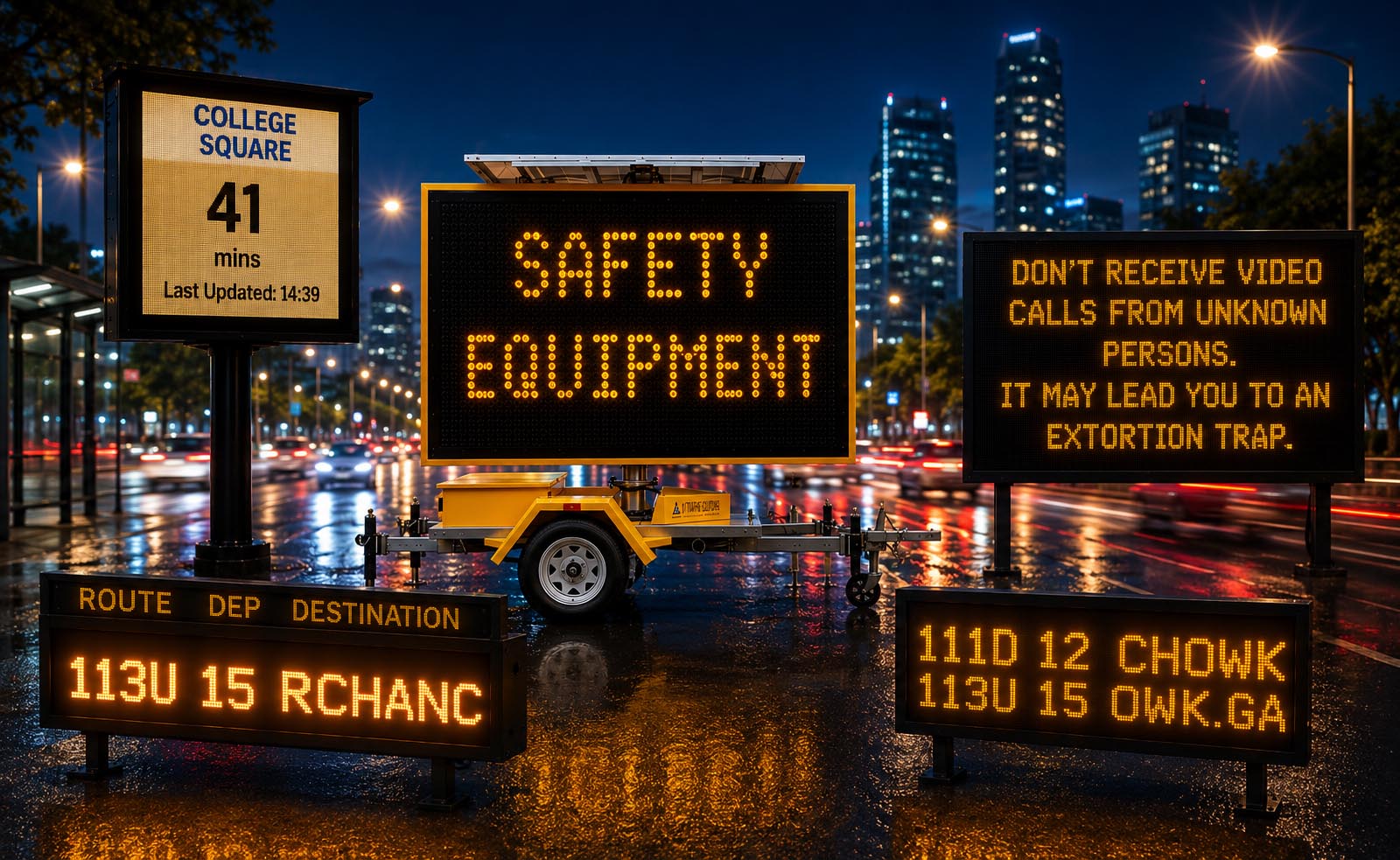

VMS Display
VMS types

Five applications, one platform

All variants use P10 RGB outdoor modules rated for 8000+ nits. Mounting structure and cabinet size differ by application. Click to view installations.

🛣️
Add photos
Highway VMS
Overhead gantry or cantilever — speed, hazard, diversion.
🛤️
Add photos
Toll Plaza Display
Lane open/closed, tariff, queue management.
🚦
Add photos
Urban Junction VMS
Traffic diversion, event messaging, congestion alerts.
🅿️
Add photos
Parking Guidance
Available spaces per level, entry/exit direction, tariff.
☀️
Add photos
Solar-Powered VMS
Off-grid sign for remote highway locations.
Technical specifications

Highway VMS specification

Parameter Specification
Pixel pitch P10 standard / P7.62 for close-viewing toll applications
Module size 320 × 160 mm
Brightness ≥8000 nits — auto-dimming to 1000 nits at night
LED brand Kinglight — 100,000 hr rated outdoor LEDs
Power supply Meanwell — PFC, 230V AC or solar compatible
Enclosure MS steel, IP65, powder-coated
Cover Anti-reflective polycarbonate
Operating temp −20°C to +65°C
Communication Ethernet, 4G SIM, RS485 — as required
Mounting Cantilever, gantry or pole — civil scope available
Why CSPL for VMS

What we do differently

Full civil and electrical scope

We handle the complete installation — foundation, pole or gantry, cabling, earthing and display. One vendor, one accountability.

Auto-dimming as standard

Light sensor and auto-dimming controller included — 8000 nits in daylight, stepped down to 1000 nits at night.

TMS software integration

Control software integrates with existing traffic management systems via standard protocols. Remote message update from the control room.

Solar-compatible design

All cabinets are compatible with solar panels and battery backup — suitable for remote highway locations without grid power.

Our work

VMS installations

Ready to get started?

Tell us what you need — we'll design it, build it and install it.
